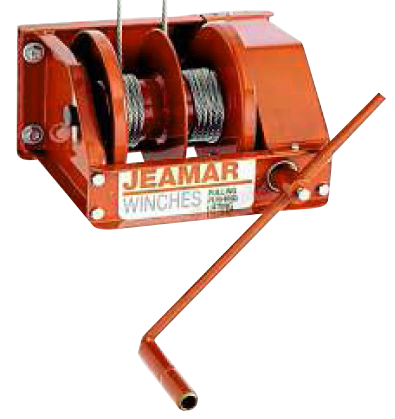

GWF Centre Flange
Wall Mount

Automatic Brake

Brakes respond automatically when the handle is released. Recoil is prevented and the load is held securely in any position.

Two Speeds

Higher-capacity models are equipped with two-speed gearing for ease in handling heavy loads.


Effective use of needle roller bearings and bushings minimizes friction. This ensures ease of operation, smooth running, increased life and minimum cranking effort.

GWF Centre FlangeWall Mount

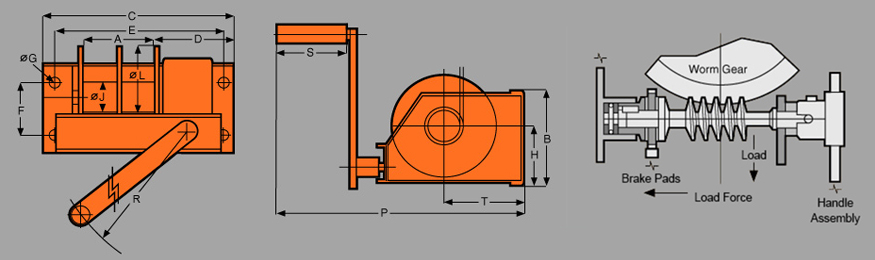

GWF Centre FlangeWall Mount Diagram

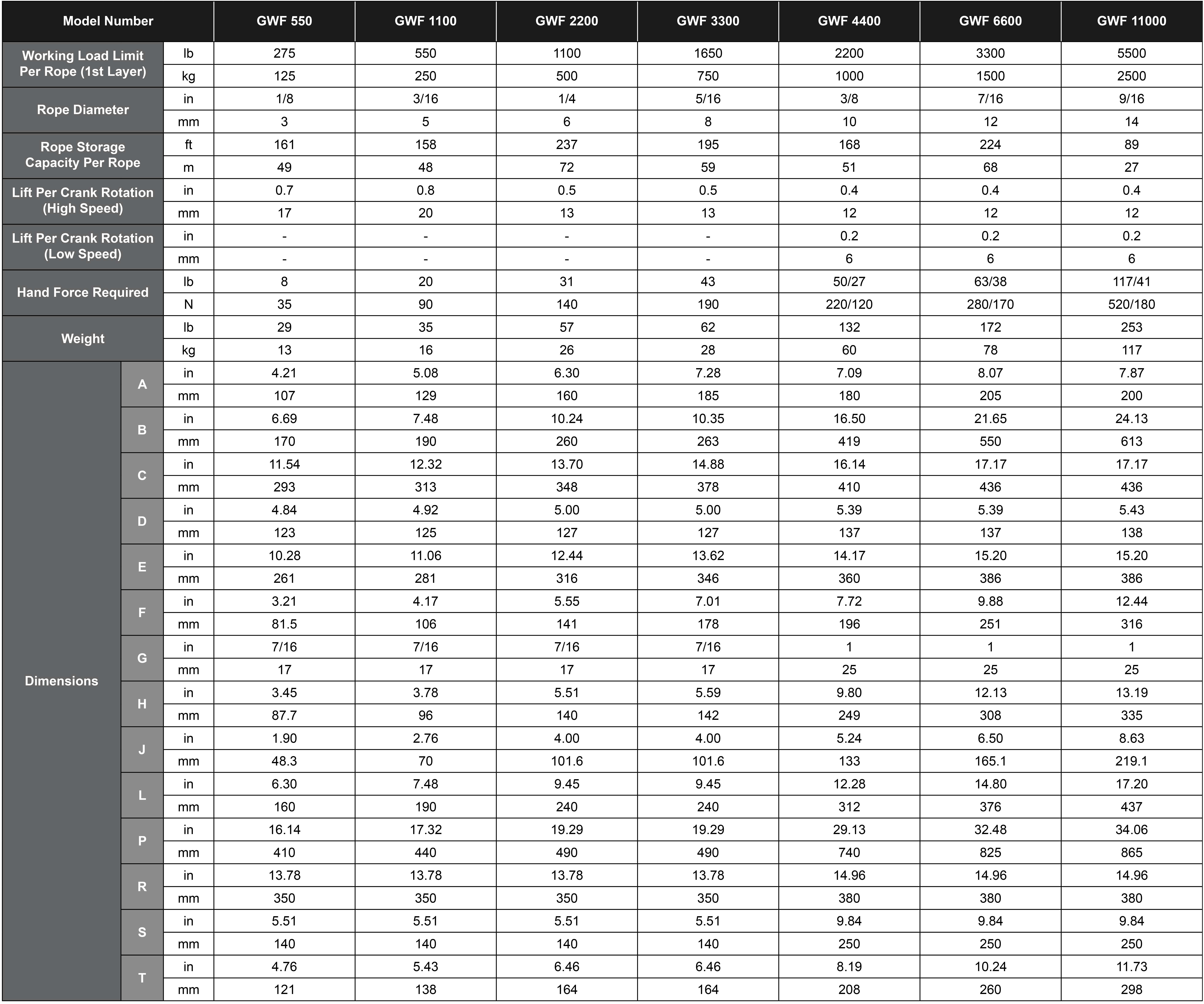

GWF Centre FlangeWall Mount Chart

Important notice

Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
