Stainless Steel Horizontal
Directional Blocks

High Strength & Low Weight

The strength of the steel used in our products considerably exceeds that of cast iron. Steel also has a weight-saving advantage of up to 50 percent over cast iron, resulting in easier handling and installation.

Exceptional Arc of Support

Our steel blocks are designed to ensure that the shape of your rope is maintained under normal load

High Efficiency Bearings

Jeamar fits its steel blocks with high-efficiency, deep-groove, double ball bearings for maximum efficiency. This results in reduced friction, smooth motion, high speed and a longer operational life.

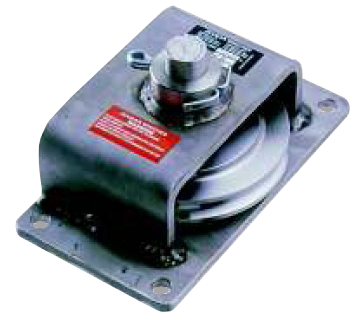

Stainless Steel HorizontalDirectional Blocks

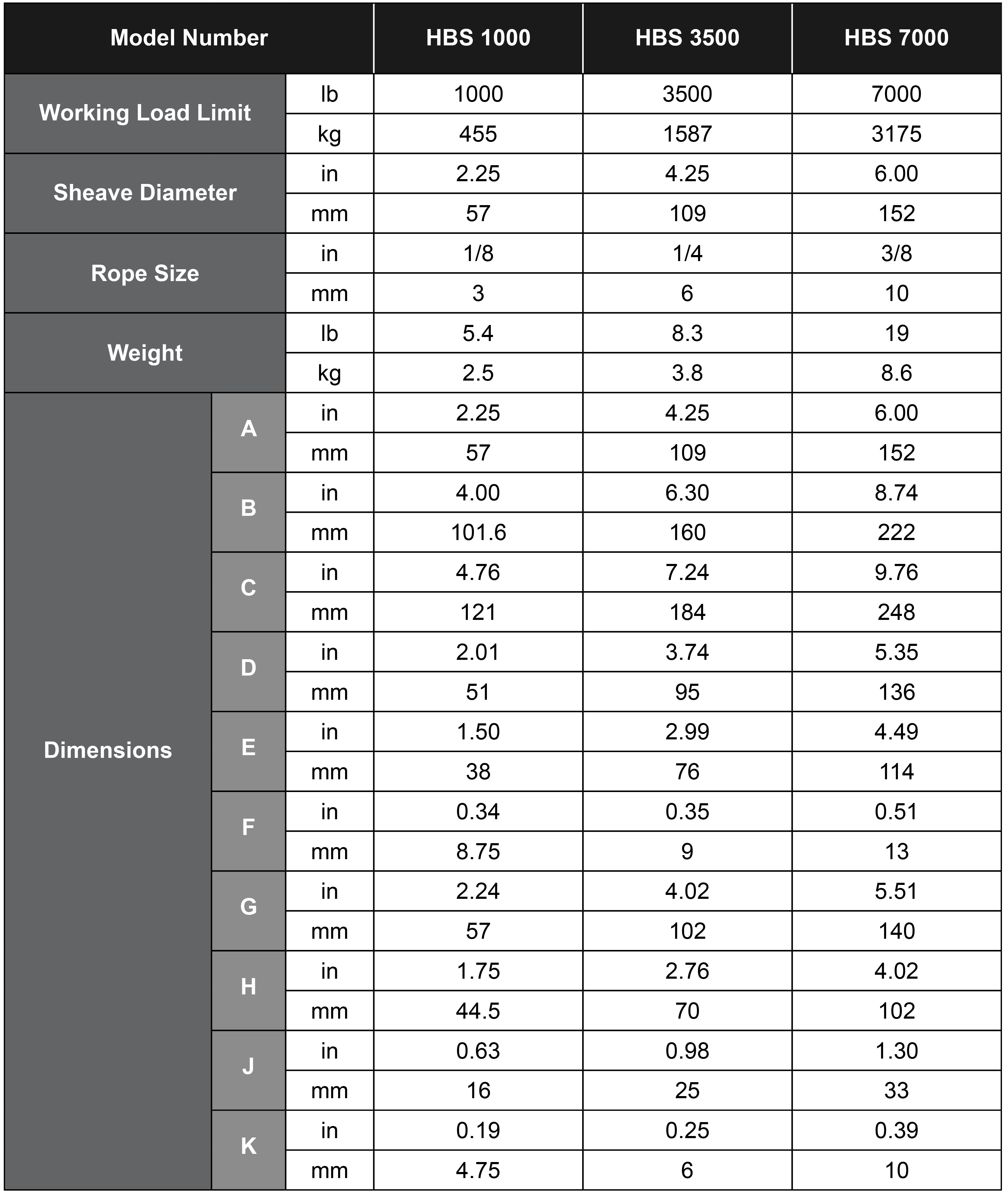

Stainless Steel HorizontalDirectional Blocks Chart

High Sheave-to-Rope Ratio

With a minimum sheave-to-rope ratio of 15:1, the rope’s bending stress is reduced for longer life.

Lifetime Lubrication

Precision sealed bearings stay lubricated ensuring low maintenance.

Block Loading

Jeamar blocks are rated for the full working load limit at 180° rope angle.

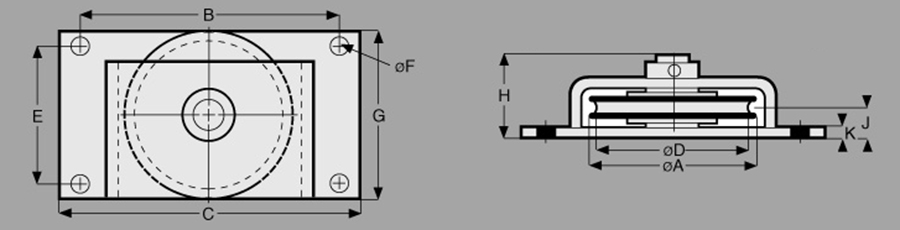

Stainless Steel HorizontalDirectional Blocks Diagram

Important notice

Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
