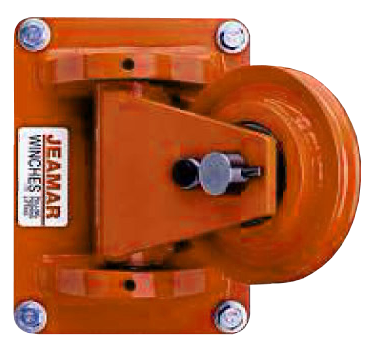

Single Swivel
Directional Blocks

Single SwivelDirectional Blocks

High Strength & Low Weight

The strength of the steel used by Jeamar considerably exceeds that of cast iron. Steel also has a weight-saving advantage of up to 50 percent over cast iron, resulting in easier handling and installation.

Exceptional Arc of Support

Our steel blocks are designed to ensure shape of your rope is maintained under normal load conditions.

High Efficiency Bearings

Jeamar fits its steel blocks with high-efficiency, deep-groove, double ball bearings. This provides maximum efficiency, reduced friction, smooth motion, long life and high speed.

High Sheave-to-Rope Ratio

With a minimum sheave-to-rope ratio of 15:1, the rope’s bending stress is reduced for longer life.

Block Loading

Jeamar blocks are rated for the full working load limit at 180° rope angle.

Lifetime Lubrication

Precision sealed bearings stay lubricated ensuring low maintenance.

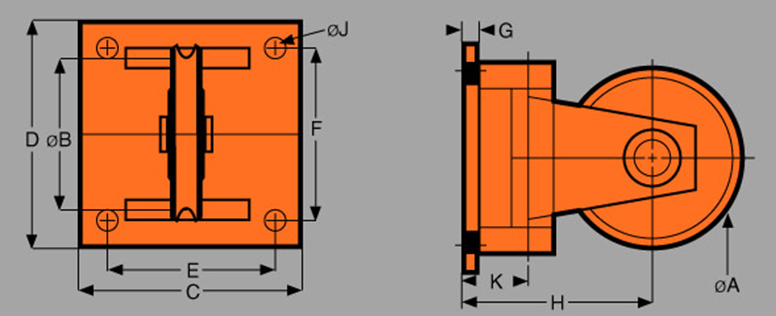

Single SwivelDirectional Blocks Diagram

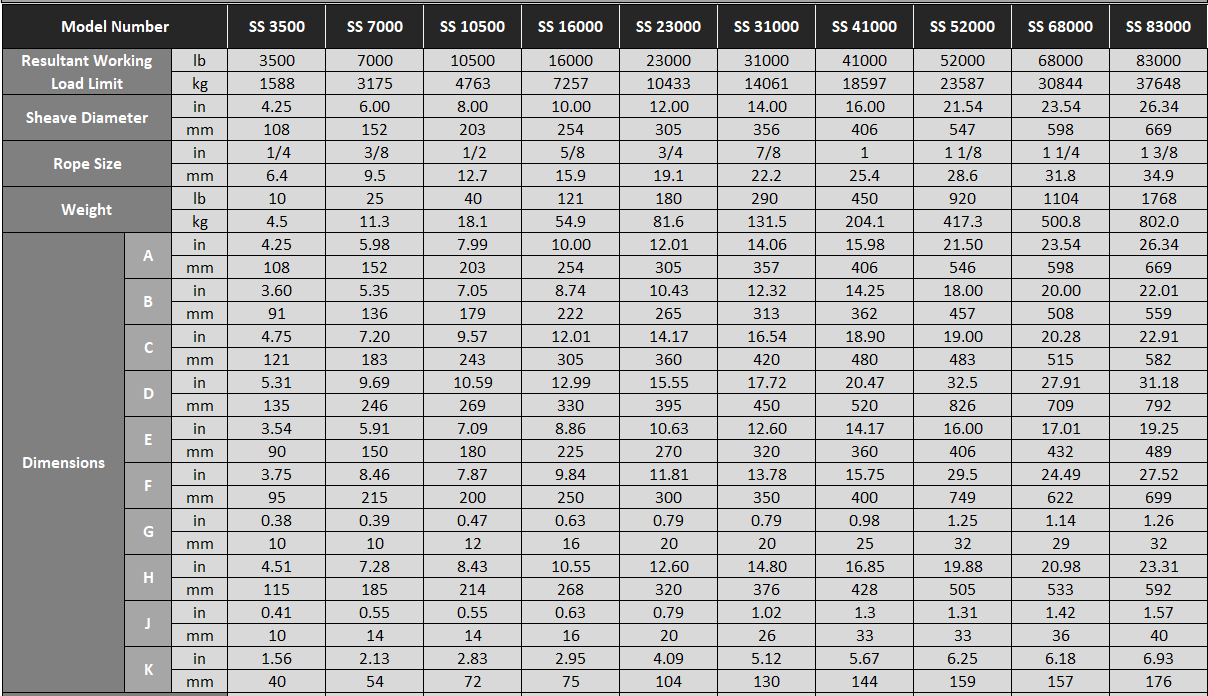

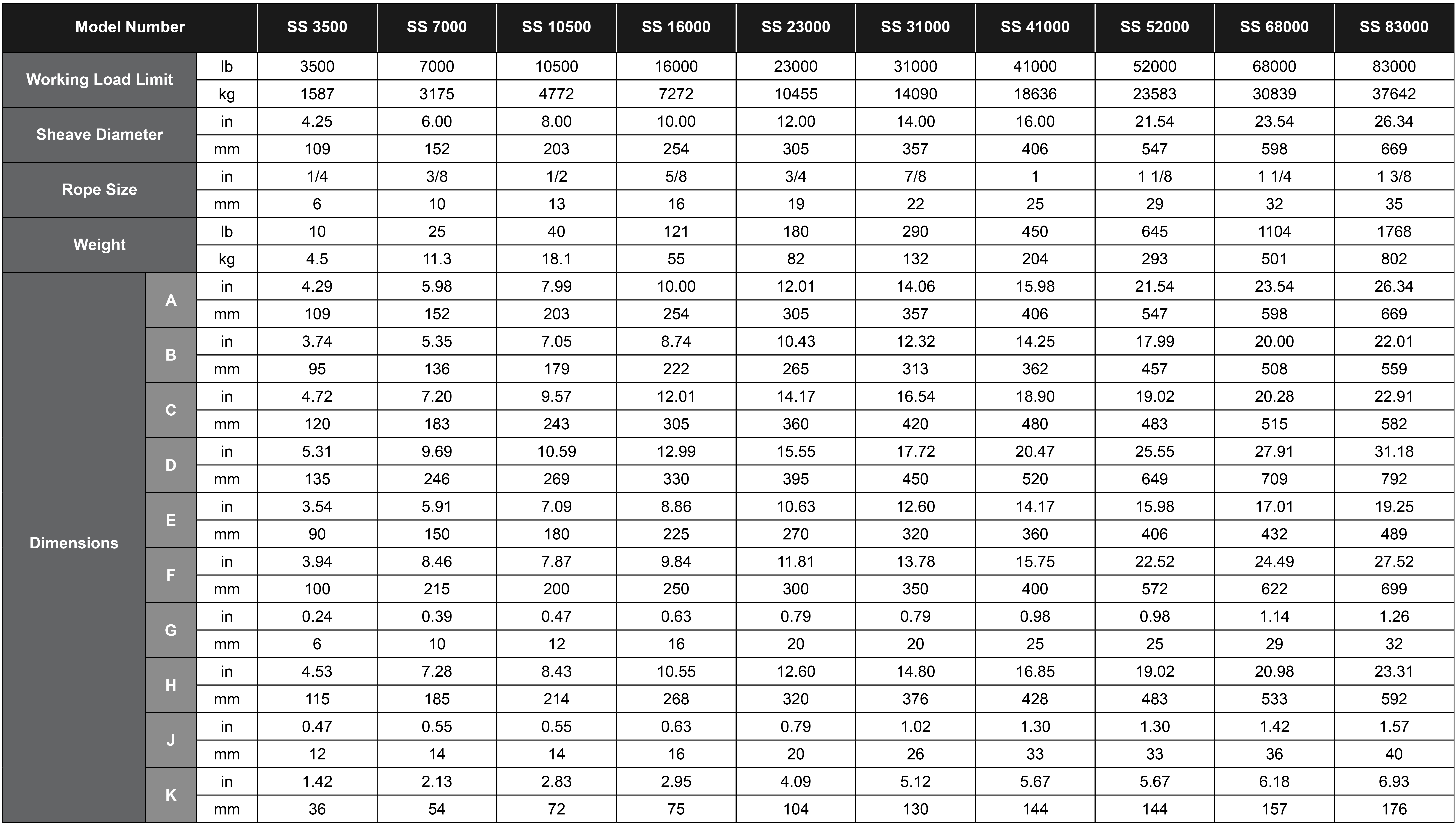

Single SwivelDirectional Blocks Chart


Contact us for any customized application you have.

Important notice

Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
