Stainless Steel
Sheaves with Bearings


Standard Sizes

Stainless sheaves are available in standard sizes from 2 inch to 16 inch and from 3,500 and 41,000 lbs working load limits. Vertical and horizontal directional blocks are also available in stainless steel to complement the three sizes of sheaves. For maximum flexibility, the dimensions of Jeamar’s stainless steel sheaves and blocks are identical to our standard line of heavy-duty sheaves and blocks. Custom sizes are available to meet your exact requirements of size and capacity.

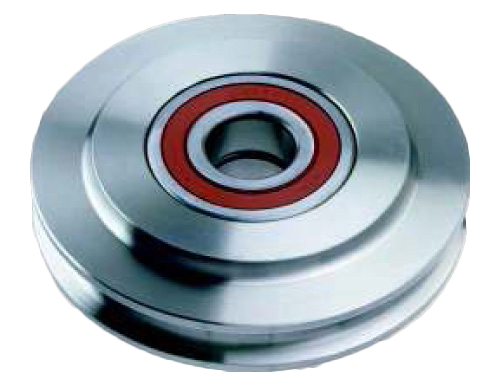

Stainless SteelSheaves with Bearings

Lifetime Lubrication

All Jeamar stainless steel sheaves come standard with lifetime lubricated, sealed, deep-groove ball bearings for long life and minimum maintenance.

Block Loading

Jeamar stainless steel sheaves are rated for the full working load limit at 180° rope angle.

High Sheave-to-Rope Ratio

Jeamar sheaves have a minimum sheave-to-rope ratio of 15:1. This ensures a large radius for the rope to bend around, which in turn decreases flexing of the rope and substantially increases rope life.

Exceptional Arc of Support

Designed with a minimum arc of support for the rope of 125 degrees, ensuring that the rope’s cross sectional shape is maintained under normal load conditions. This increases rope life and increases sheave life by reducing gouging.

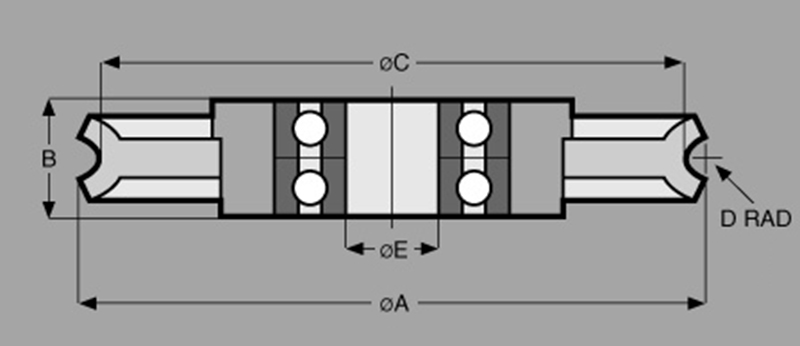

Stainless SteelSheaves with Bearings Diagram

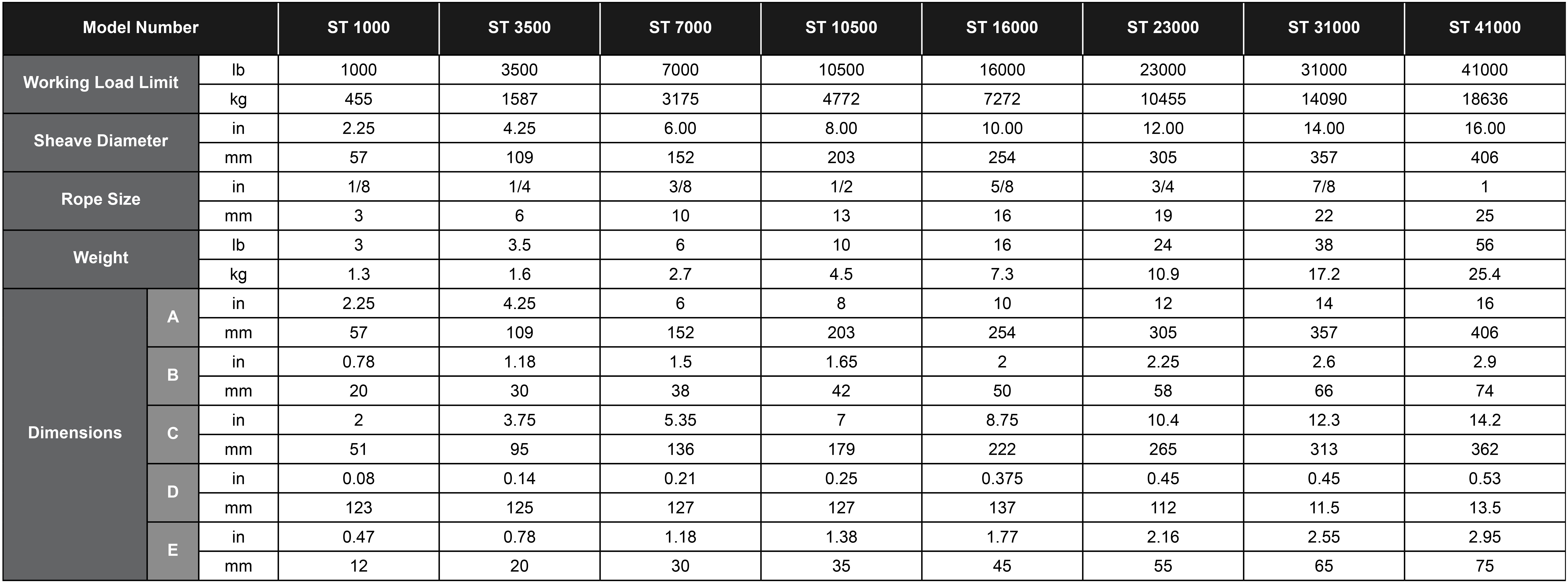

Stainless SteelSheaves with Bearings Chart

Notice

It is essential that the correct size of sheave be used for the rope. For instance, a 1/4 inch diameter rope should be used with a sheave that has a 1/4 inch groove, to achieve optimum conditions.

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
