Mining - Sheaves



Mineria Castellana - Mexico

Mineria Castellana - Mexico

  • 96" diameter sheaves grooved for 1 1/4" rope as part of a shaft sinking project in Mexico c/w 3 stage winches and plumbline winches

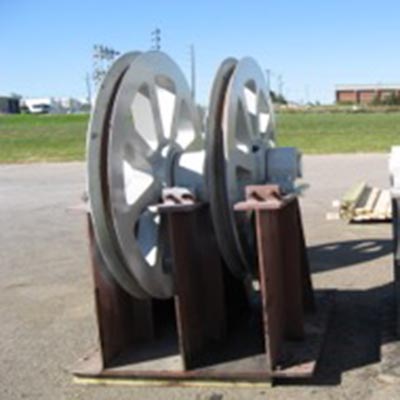

Redpath

Redpath

  • 4 x 56" diameter sheaves designed for:
  • 1 3/4" rope with 180 degree wrap angle
  • Working load of 90,000 lbs
  • Rope breaking strength of 450,000 lbs

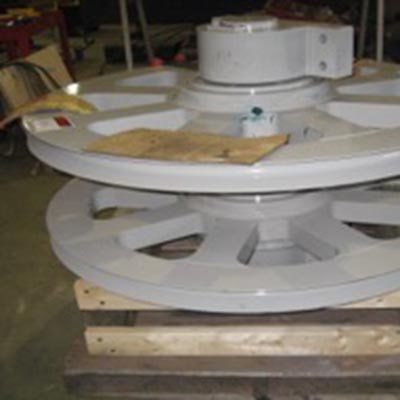

Dumas

Dumas

  • Dual sheave design
  • 60,000 lb capacity
  • 60" diameter for 1 1/2" rope

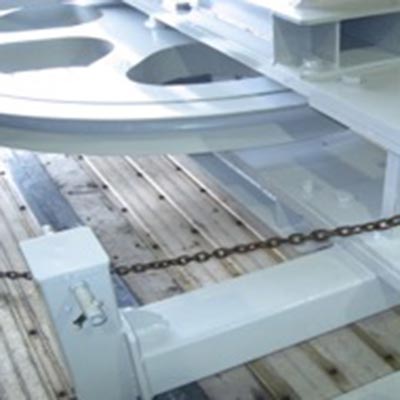

Xstrata

Xstrata

  • Series of 4 custom sheaves
  • 96" diameter
  • Custom blocking to suit application

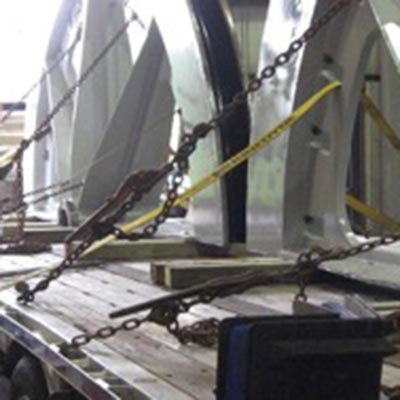

Rio Tinto

Rio Tinto

  • Custom design split sheave
  • 2 piece design to allow for installation into a narrow fit application
  • 12' diameter in total



Cementation

Cementation

  • 16 custom sheaves
  • Variety of diameters and capacities

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
