Mining - Shaft Sinking

Winches

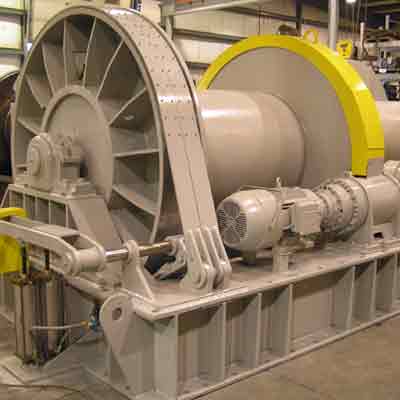

Agnico-Eagle Gold

Agnico-Eagle Gold

Val D'or Quebec

  • Project required 3 shaft sinking winches
  • Each winch 70,000 lbs lifting capacity
  • 64" drum length
  • Dual independent braking systems

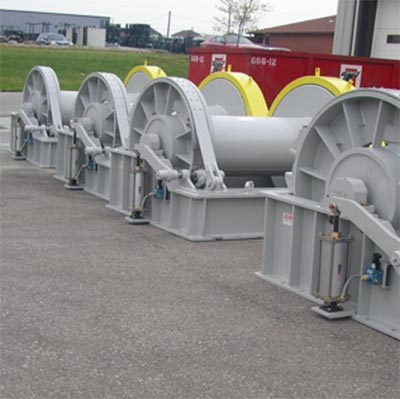

Cowin & Company

Cowin & Company

  • Project required 4 shaft sinking winches
  • Each winch with 31,200 lbs lifting capacity
  • 3,000' of rope
  • Custom control panels

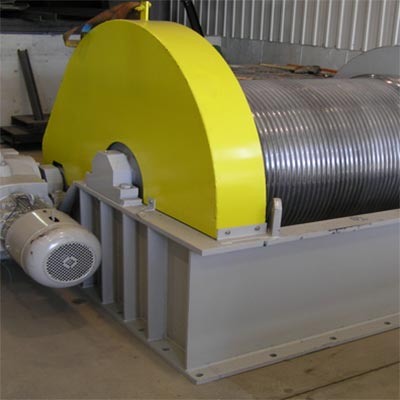

Mineria Castellano Mexico

Mineria Castellano Mexico

  • Project required 3 shaft sinking winches
  • Each winch with 35,800 lbs capacity
  •  3000' rope
  • Project also included plumbline winches & sheaves and blocks

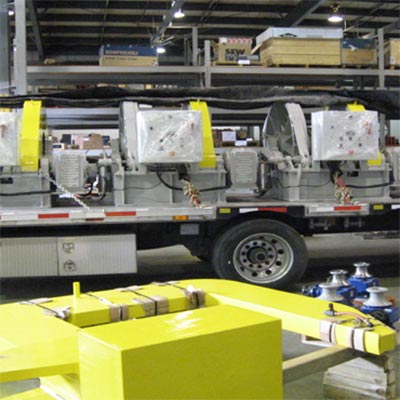

U.S. Silver

U.S. Silver

  • Project included 4 Shaft sinking winches
  • Each winch with 37,500 lbs lifitng capacity
  • 4,000' of rope
  • Lifting speed of 14 fpm
  • Custom control panels

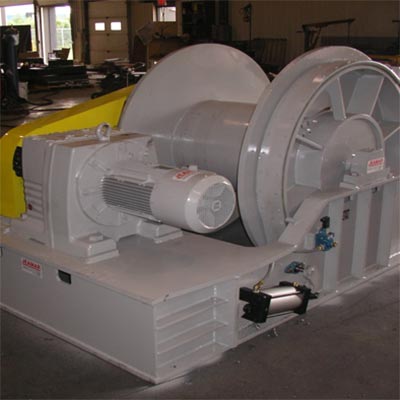

DMC Mining

DMC Mining

  • Dual shaft sinking winches
  • 25,000 lbs lifting capacity
  • 3,500' of 1" rope

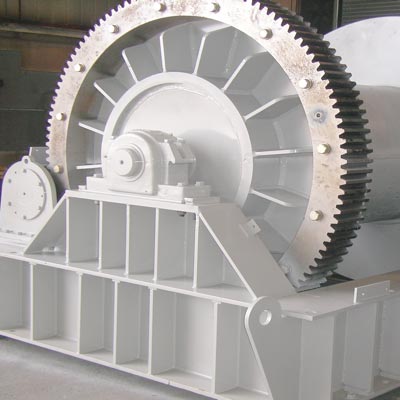

Walden Equipment

Walden Equipment

  • 4 Shaft Sinking Winches
  • Each winch with 60,000 lb capacity
  • C22
