Marine - Mooring

Winches

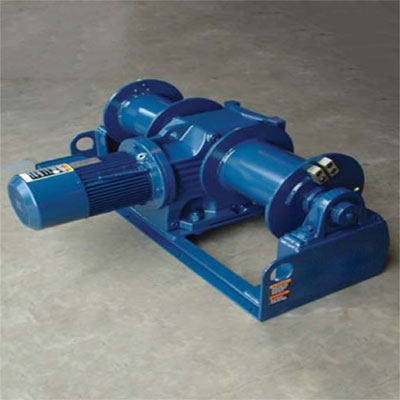

Washington State Ferries

Washington State Ferries

  • Provided a series of 12 mooring and landing winches for the ferry dock
  • 5000 lb winch cable tension required
  • VFD's for soft starting and infinite control
  • Manual operation capability in case of power loss

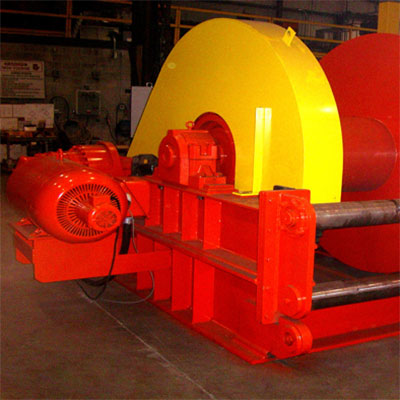

China Harbor - Costain

China Harbor - Costain

  • 110,000 lbs line pull
  • 1,000 feet of 1 5/8" rope
  • 20 - 33 fpm
  • Level wind
  • 100 HP vector drive

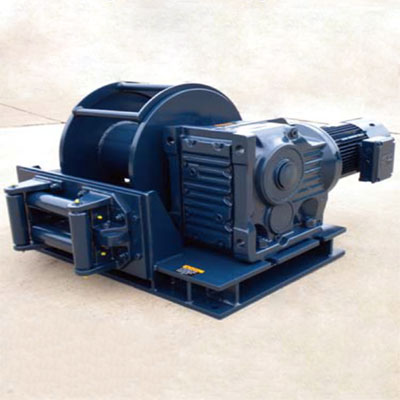

Kurney Company

Kurney Company

  • Series of 8 winches required
  • Direct drive fully enclosed gearbox
  • Fan cooled motors
  • Automatic electromagnetic brake
  • 6000 lb holding capacity
  • Attached fairlead assembly

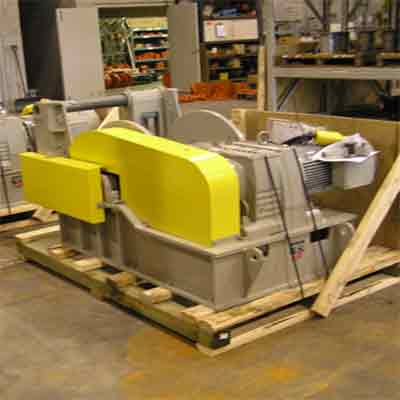

Chilean Navy Mission

Chilean Navy Mission

  • Model CP 10,000-60
  • 12,200 lbs linepull
  • 54 - 72 fpm
  • 376' rope
  • Total enclosed fan cooled motors
  • Level wind c/w 1" rope

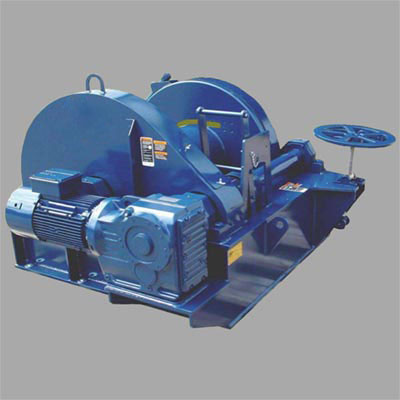

Mooring and Anchoring

Mooring and Anchoring

  • Up to 20,000 lbs line pull
  • Severe duty TEFC motor
  • Manually operated jaw clutch to allow for free spooling of the rope
  • Adjustable band brake can hold up to 65,000 lbs of tension
