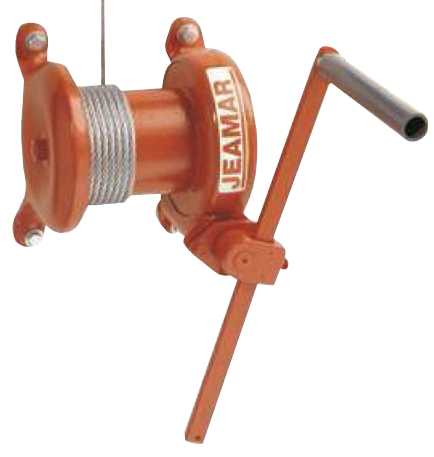

WSG Heavy Duty Worm
Sealed Gear


Fully Enclosed, Permanently Lubricated Gears

The WSG's enclosed worm shaft and worm wheel is immersed in an oil bath. This provides constant lubrication and protection from corrosion. Maintenance is reduced while life expectancy is increased.

High Rope-to-Drum Ratio

Rope life is substantially increased with drum diameters, a minimum of 20 times the diameter of the rope.

Automatic Brake

Brakes respond automatically when the handle is released. Recoil is prevented and the load is held securely in any position.

WSG Heavy Duty WormSealed Gear

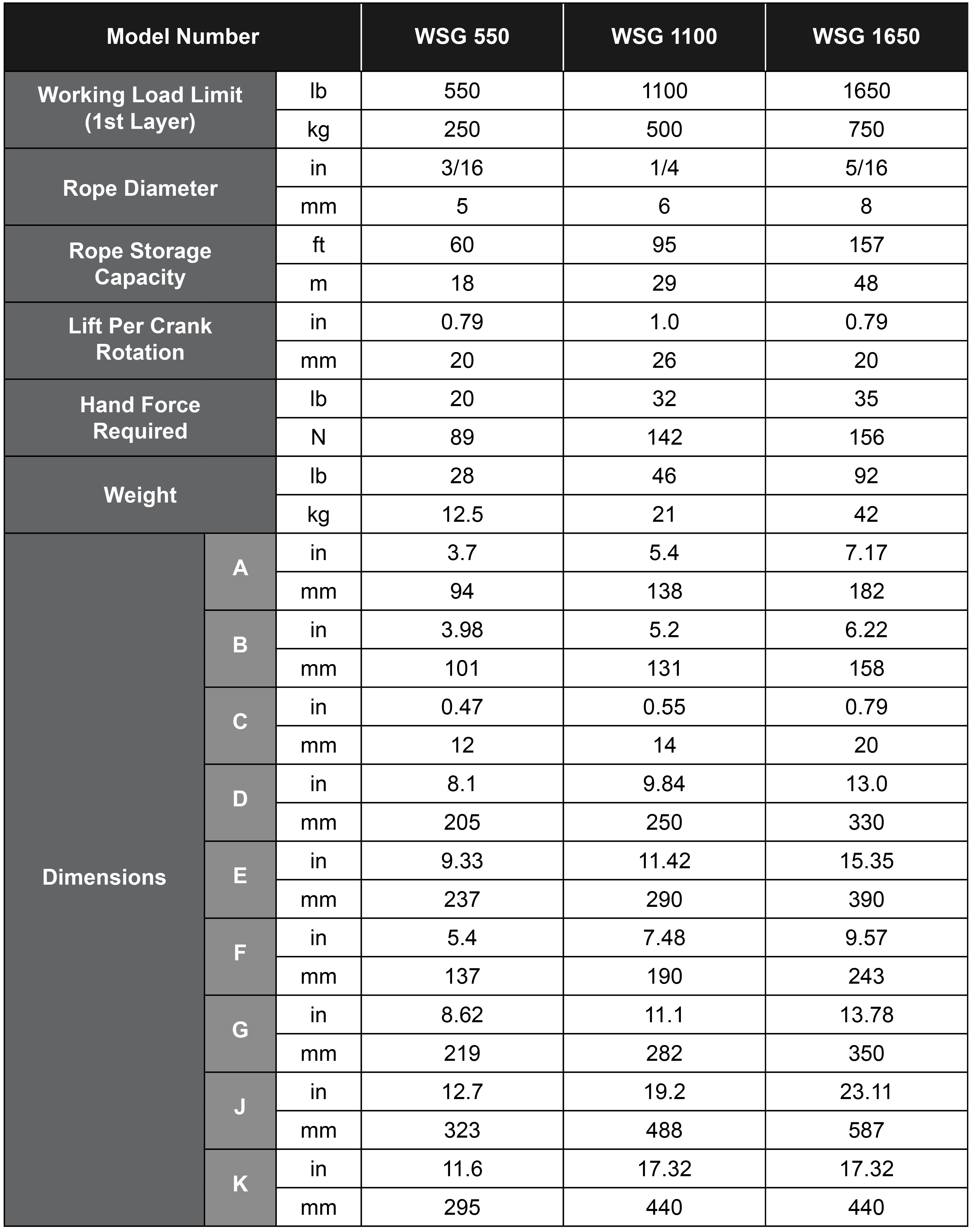

WSG Heavy Duty WormSealed Gear Chart

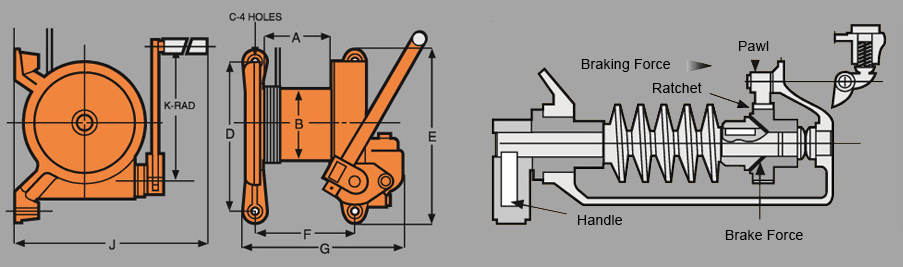

WSG Heavy Duty WormSealed Gear Diagram

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
