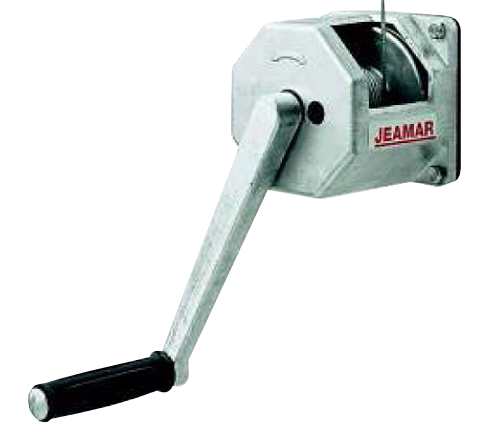

WMA Aluminum
Wall Mount


Rope Off Any Angle

Winch can be mounted in any position to allow the rope to come off at any angle. Ideal for all directions.

Removable Handle

Designed to prevent tampering if the operator should leave the winch under load.

Automatic Brake

When the crank is turned either clockwise or counter-clockwise direction. Torque is applied to a brake spring mechanism, reducing the outside diameter of the spring, releasing braking torque. If the handle is released at any time, the brake torque is automatically applied as the spring unloads, holding the load securely.

WMA AluminumWall Mount

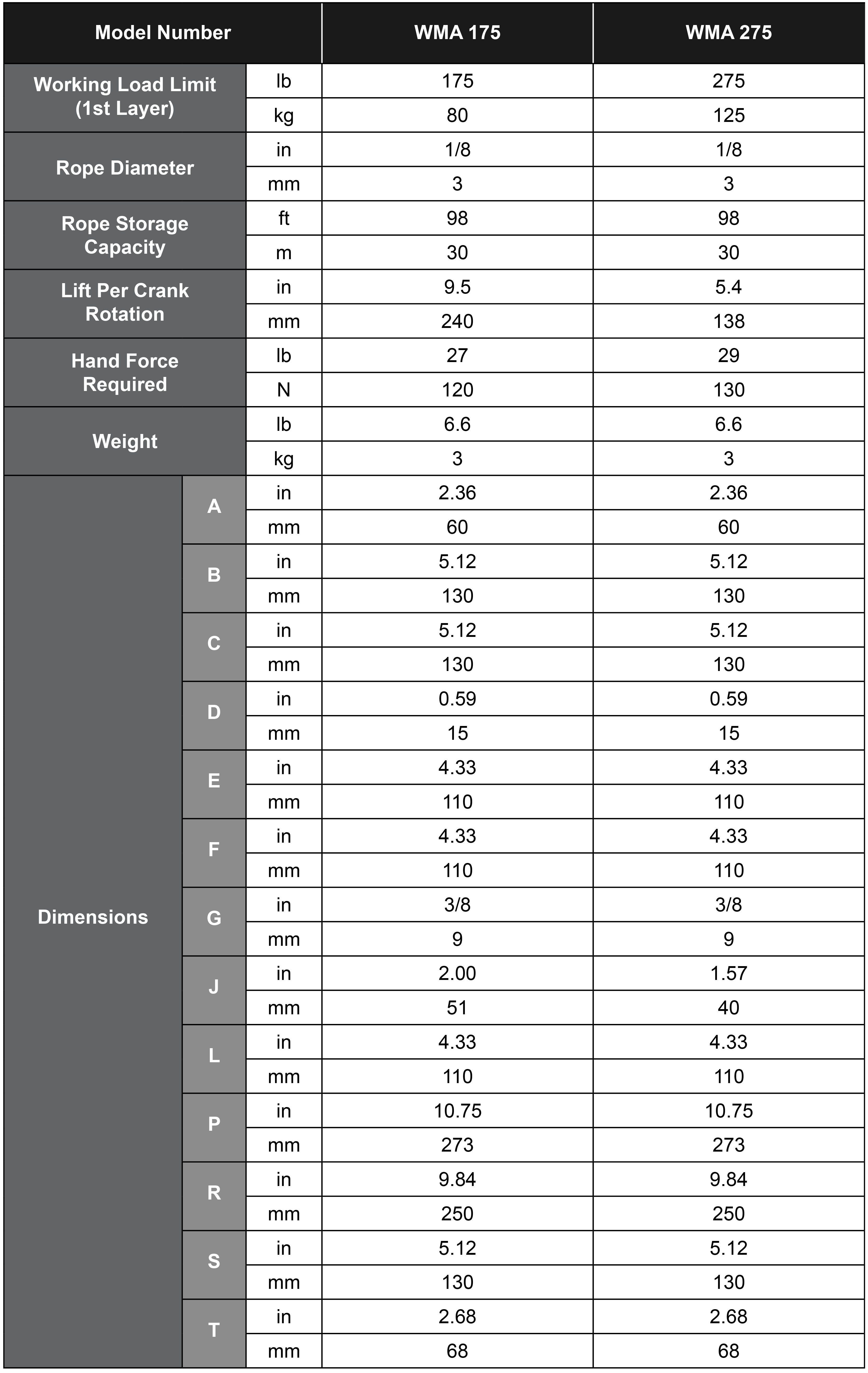

WMA AluminumWall Mount Chart

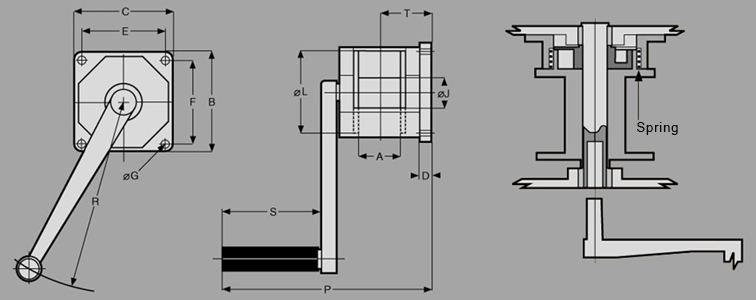

WMA AluminumWall Mount Diagram

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
