CMC Free Spooling
Hand Winch

Totally Enclosed Gears

A sealed oil bath ensures constant lubrication and quiet operation.


Space-saver profile is ideal for installation and operation in confined spaces.

Automatic Brake

The brake employs an under-driven worm drive to the rope drum. Operated in a clockwise direction, the initial rotation engages the worm pinion and the wormwheel. The action is similar to a screw thread being engaged. Brakes respond automatically when the handle is released. Recoil is prevented and the load is held securely.

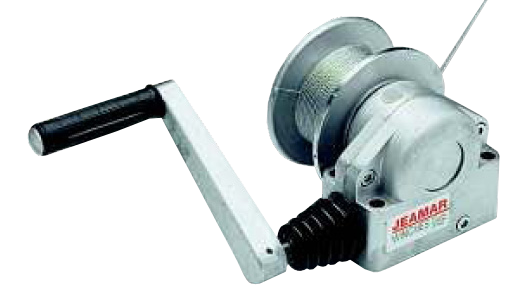

CMC Free SpoolingHand Winch

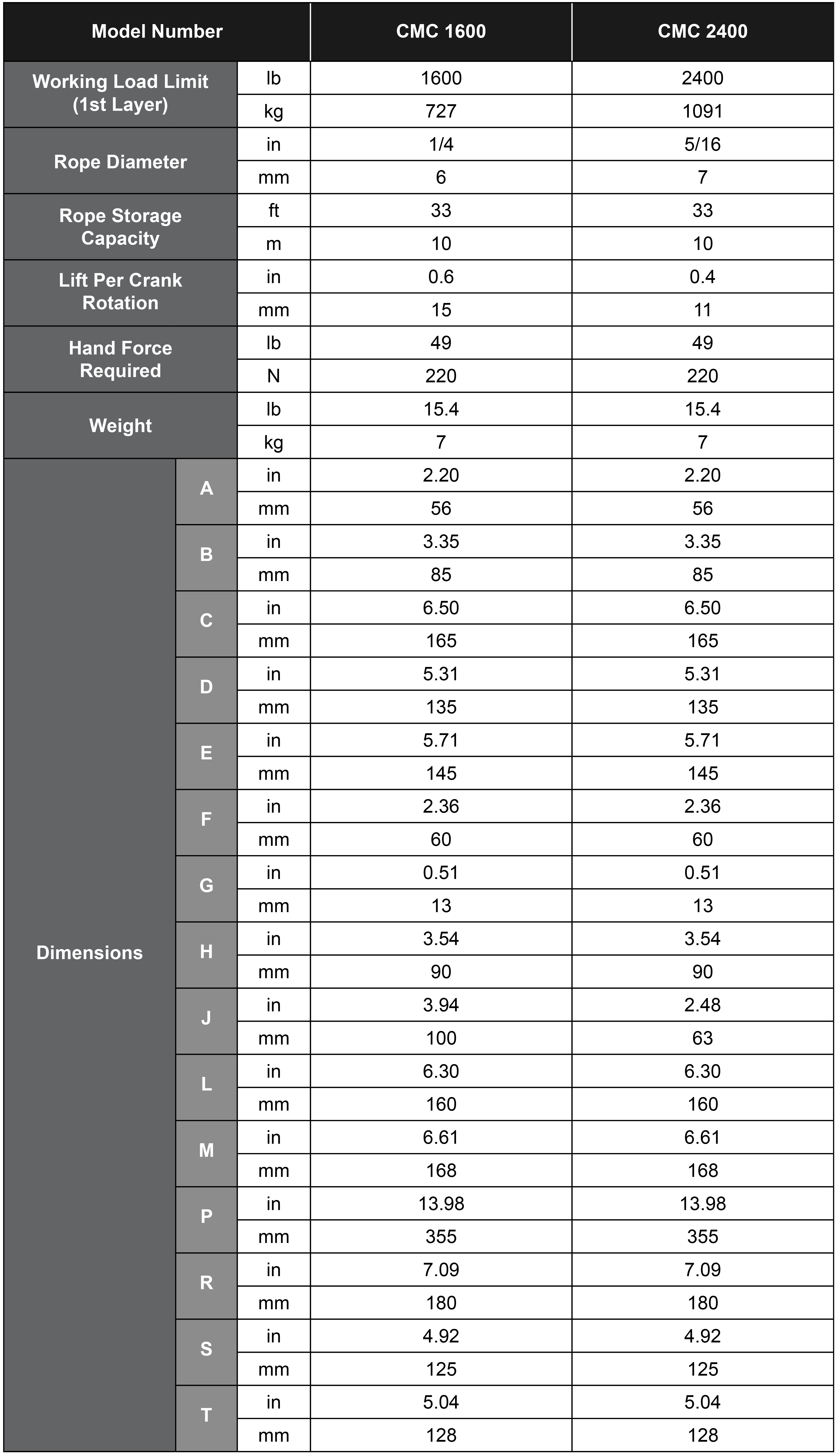

CMC Free SpoolingHand Winch Chart

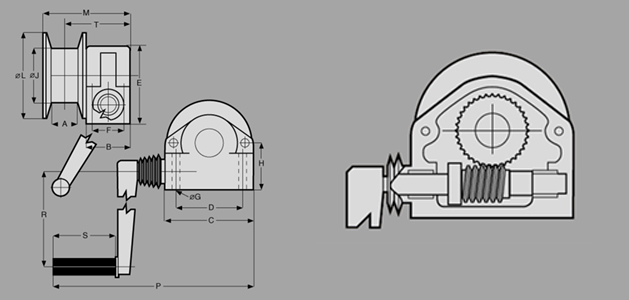

CMC Free SpoolingHand Winch Diagram

Important notice

Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
