Heavy Duty Lifting Winches
NLS Series


Electric Motors

The full range of Jeamar’s heavy duty lifting winches is available with 3-phase motors in any standard voltage at 50 or 60 Hz. Winch models NLS 400, NLS 900, NLS 1400 and NLS 2000 are single phase in any standard voltage at 50 or 60 Hz. All motors are TEFC flange mounted and conform to NEMA, EEMAC or IEC specifications.

Braking Systems

Standard on all heavy duty lifting winches, the electromagnetic brake is a disc type that is activated automatically in the event of a power interruption. The brake will stop the winch and hold the load securely. Due to the high ratio of the worm gear, it has the effect of a secondary braking system in accordance with the requirements of OSHA.

Heavy Duty Lifting WinchesNLS Series

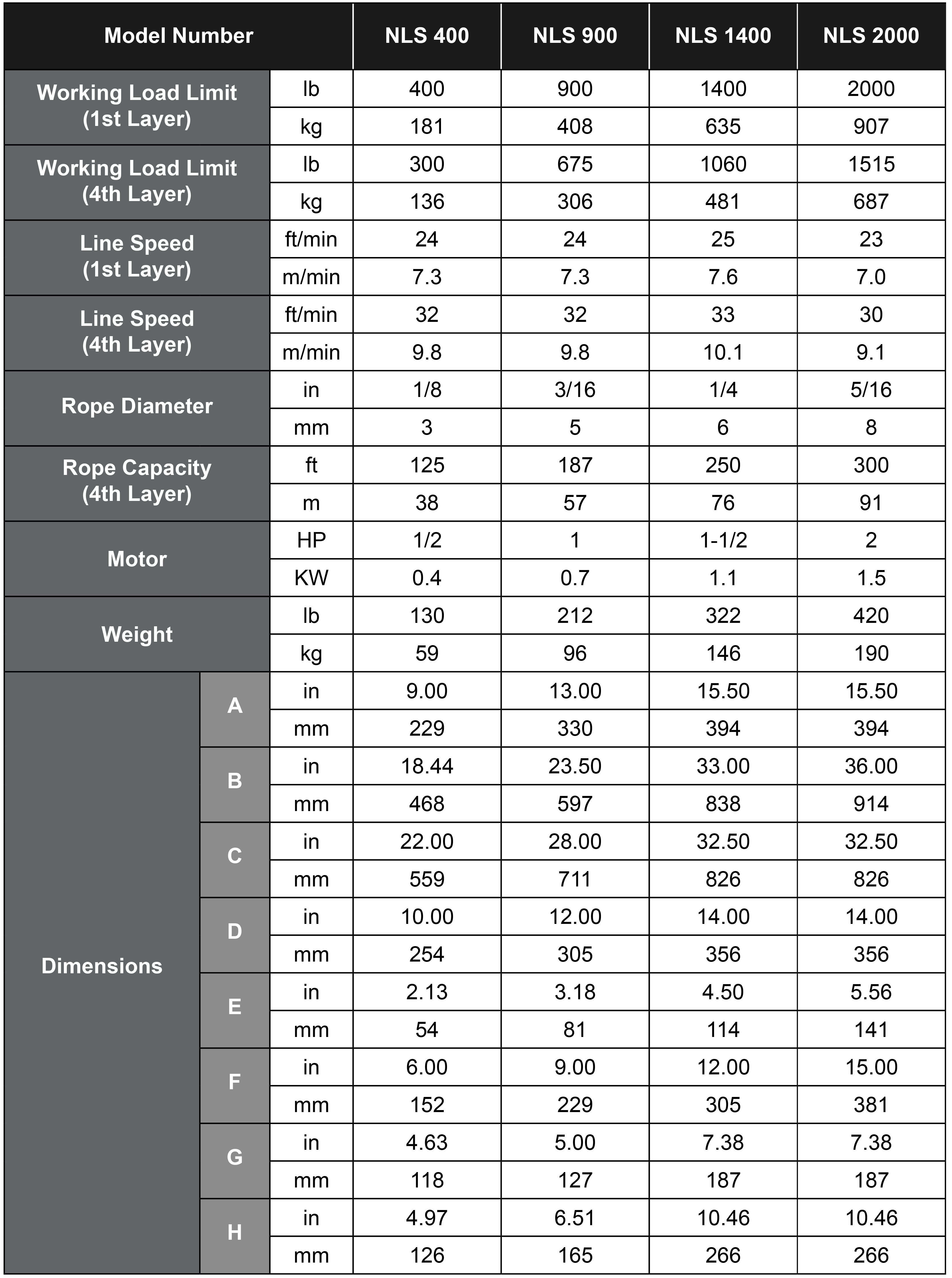

Heavy Duty Lifting WinchesNLS Series Chart

Power In - Power Out

For added safety, all winches are fully reversible. This gives the operator complete control of the winch load in both directions at all times.

High Service Factors

Jeamar winches are designed and manufactured for continuous, heavy-duty operation with a minimum service factor of 1 (one).

Gear Reducers

All Jeamar heavy duty lifting winches utilize high efficiency helical worm or worm reducers.

All Ball & Roller Bearings

Friction load loss is reduced to a minimum using ball and roller bearings. No bushings means higher efficiency and more power for pulling.

Direct Drive

A simple, direct-drive design increases the efficiency of the winch and eliminates drive chains or bull gears, to maximize power output.

Any Position

An open-base design permits mounting in horizontal or vertical positions. Loads can be pulled through the base itself, which is particularly useful in limited-space installations.

Heavy Duty Lifting WinchesNLS Series Diagram

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
