Heavy Duty
CP Electric Winches

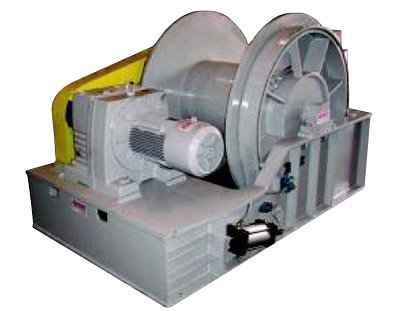

Heavy Duty CP Electric Winches

Voltage

Jeamar CP Electric Winches are available in 230 / 460 / 575 / 3/ 60 voltages.

Nema Design

There is a totally enclosed, fan cooled electric motor with adequate starting torque to overcome the initial inertia of the pulling load.

Gear Reduction

Jeamar CP Electric Winches have parallel helical gear reducer with a final chain drive.

Automatic Brakes

The spring applied, electric release brake activates in the event of power interruption to stop and hold the load securely.

Heavy Duty Steel Frame

Jeamar CP Electric Winches feature heavy duty welded steel frames and guarding.

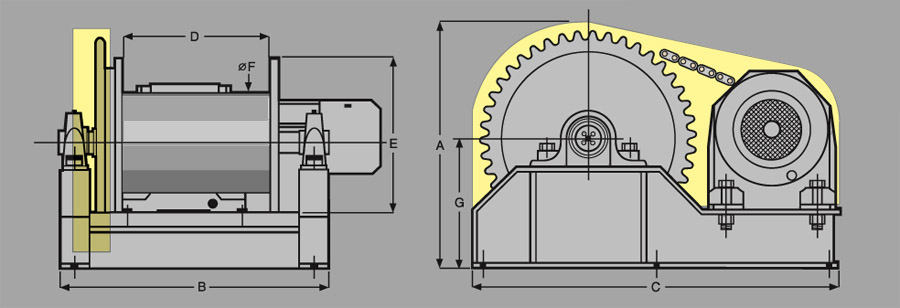

Heavy Duty CP Electric Winches Diagram

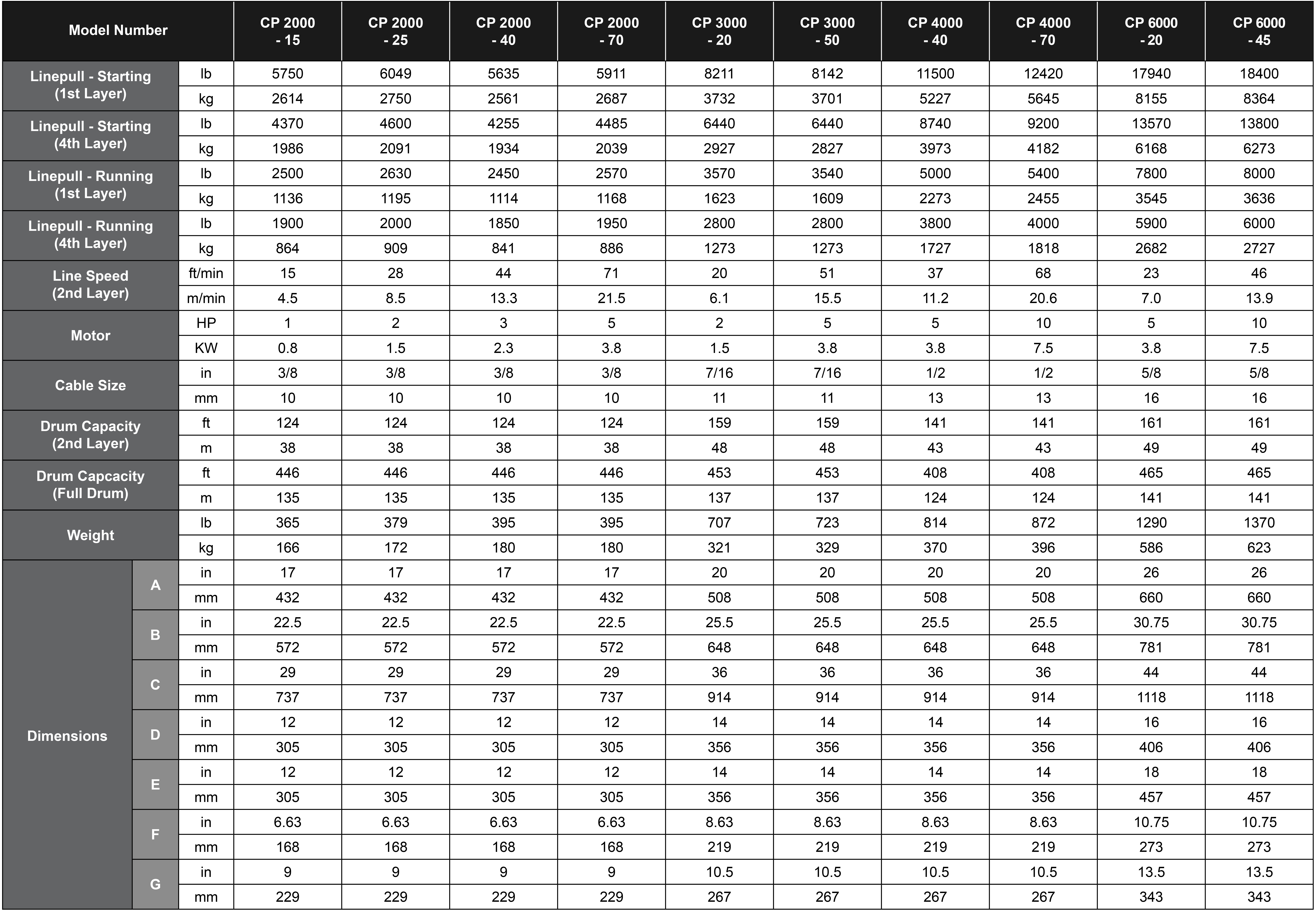

Heavy Duty CP Electric Winches Chart

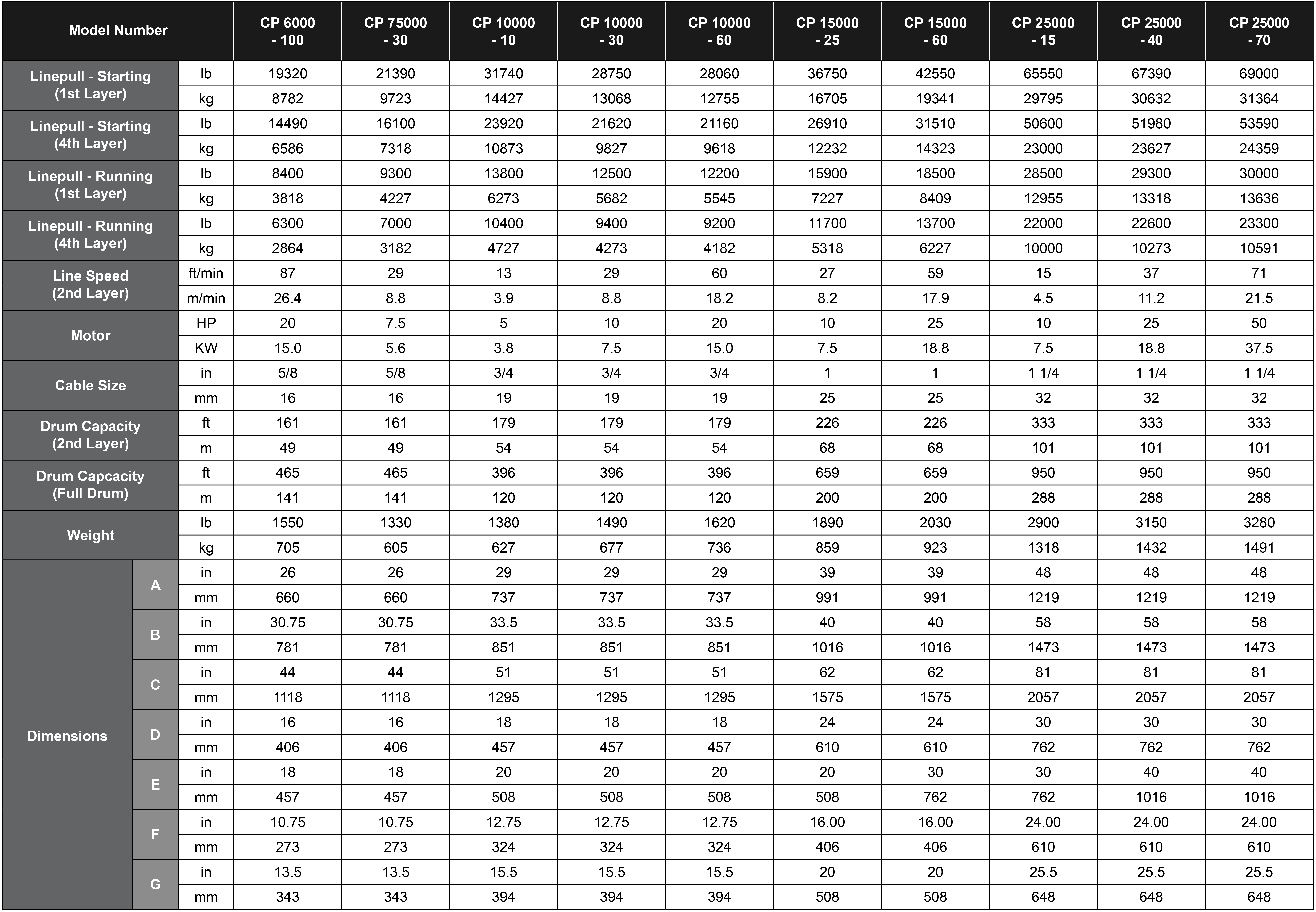

Heavy Duty CP Electric Winches Chart

Notice

Contact us for any customized application you have.

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
