Limit
Switches


LimitSwitches

Ease of Operation

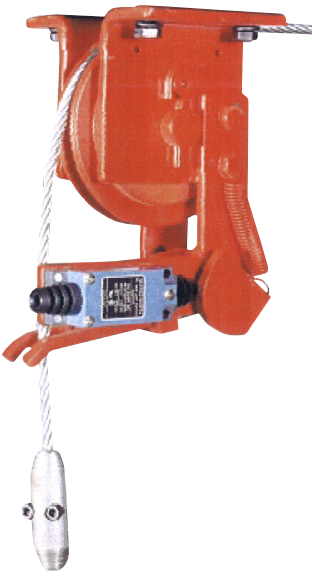

Jeamar limit switches are ideal for installations where a predetermined travel distance is essential. The 'kicker' on the rope is easily adjusted to quickly alter the distance of travel.

Exceptional Arc of Support

Our steel limit switches ensure that the shape of your rope is maintained under normal load conditions.

Work Hardened

Rope grooves are hardened during forming increasing the life of sheave and rope.

High Sheave-to-Rope Ratio

With a minimum sheave-to-rope ratio of 15:1, the rope’s bending stress is reduced for longer life.

Lifetime Lubrication

Precision sealed bearings stay lubricated ensuring low maintenance.

Block Loading

Jeamar limit switches are rated for full working load limit at 0º rope angle.

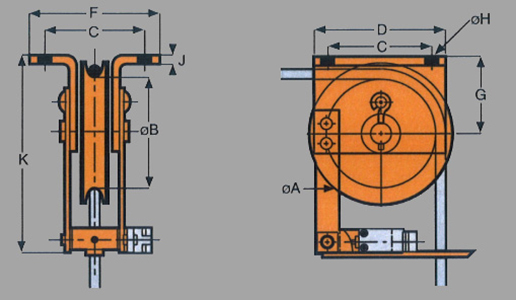

LimitSwitches Diagram

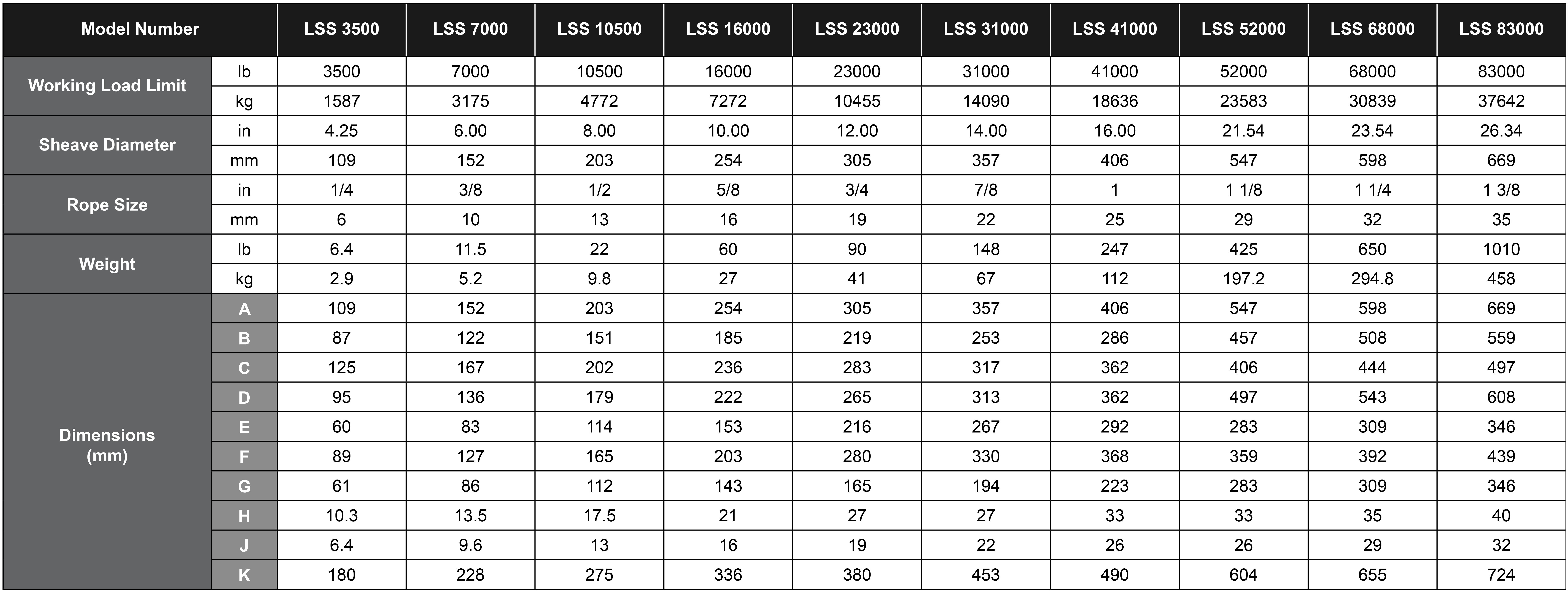

LimitSwitches Chart

Notice

Contact us for any customized application you have.

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
