GS Wall Mount
Spur Gear


Bearings

Effective use of needle roller bearings and bushings minimizes friction. This ensures ease of operation, and as a result the winch runs smooth, increasing life and reducing cranking effort.

Models

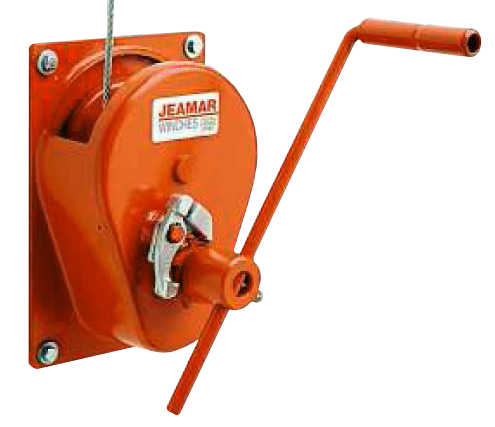

Model shown is GS 660 and 1100. Models GS 275, 2200 and 4400 differ slightly.

Automatic Brake

The winch is supplied with a detachable handle. The braking system is applied automatically when the operator stops turning the crank and the load is held securely.

GS Wall MountSpur Gear

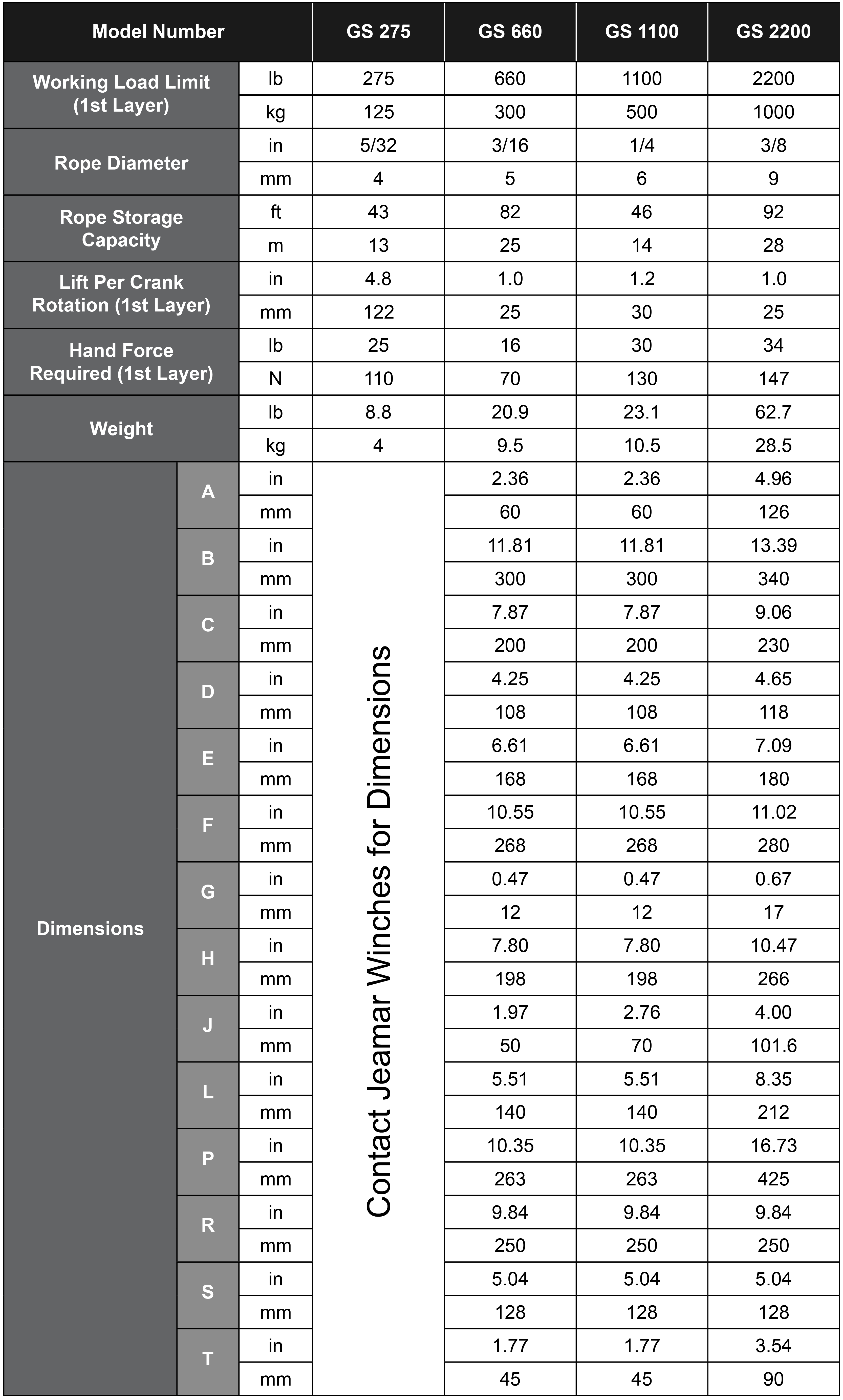

GS Wall MountSpur Gear Chart

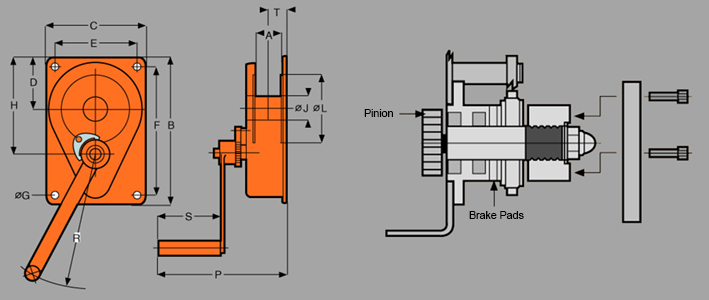

GS Wall MountSpur Gear Diagram

Important notice


Due to our policy of continuing development, all specifications are subject to change without notice. Users of these products are responsible for ensuring their suitability for the application in which they are being used.
